TUYOU TV-D101A 4K Endoscopic Camera with Built-in Video Recording and HDMI/SDI/CVBS/DVI/VGA Output for One-touch Freeze in Medical Endoscope Imaging System

Name: TUYOU TV-D101A 4K Endoscopic Camera with Built-in Video Recording and HDMI/SDI/CVBS/DVI/VGA Output for One-touch Freeze in Medical Endoscope Imaging System
Brand: Shenzhen Tuyou Medical Imaging Co., Ltd.
SKU: TV-D101A
Price: 3,000.00 USD
Availability: InStock

브랜드 이름:	TUYOU
모델 번호:	TV-D101A
MOQ:	1 세트
배달 시간:	0 일
지불 조건:	T/T, Western Union

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE FDA ISO13485

유형:

내시경

기기 분류:

클래스 I

브랜드 이름:

TUYOU

모델 번호:

TV-D101A

속성:

의료용 이미지 시스템

제품 이름:

내시경 의료 카메라

이미지 센서:

1/2.8 "소니 CMOS

키워드:

의료 장비

해결:

포장 세부 사항:

상자 크기 : 48.5*48*26 "무게 : 11kg 하나의 PC

공급 능력:

한 달에 2000

강조하다:

Built-in Video Recording 4K Endoscopic Camera

HDMI/SDI/CVBS/DVI/VGA Output Medical Endoscope Camera

One-touch Freeze Endoscope Imaging System

제품 설명

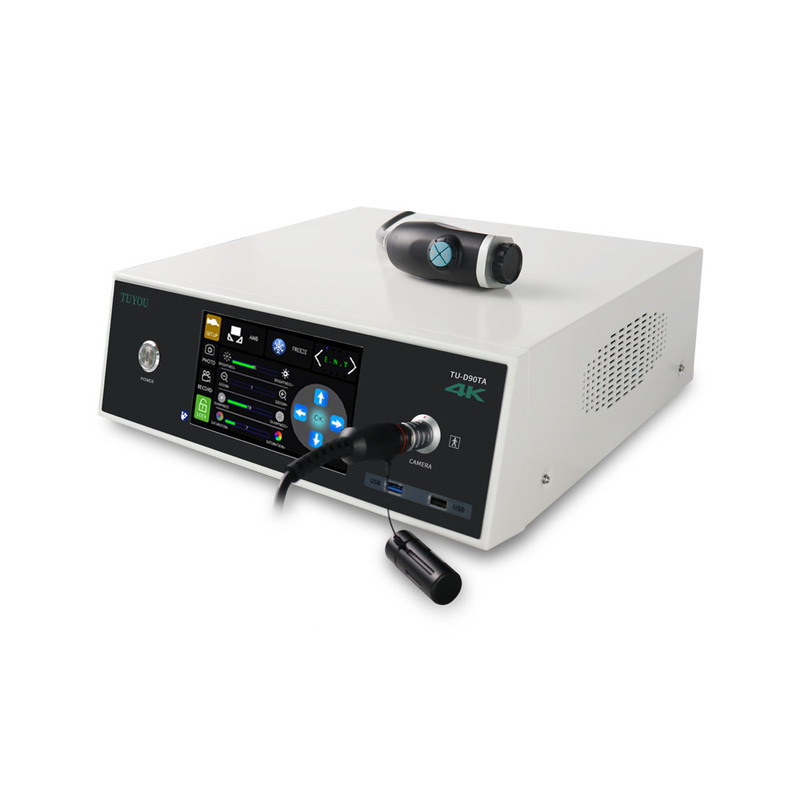

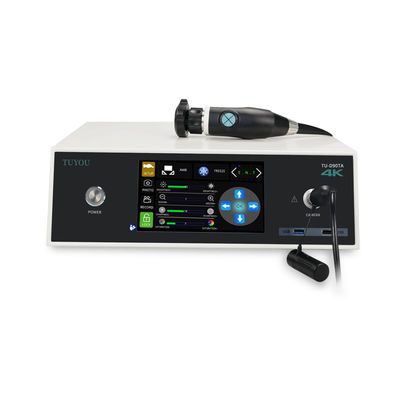

TUYOU TV-D101A 4K Endoscopic Camera with 6 inch Display and Recorder for Laparoscopy

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

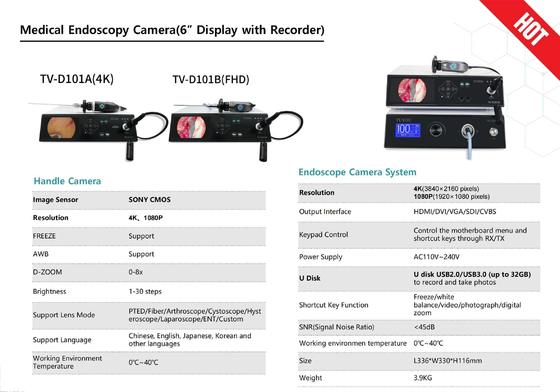

Product Specifications

System Parameters
Item Number	TV-D101A(4K TV)
Input Interface	4K

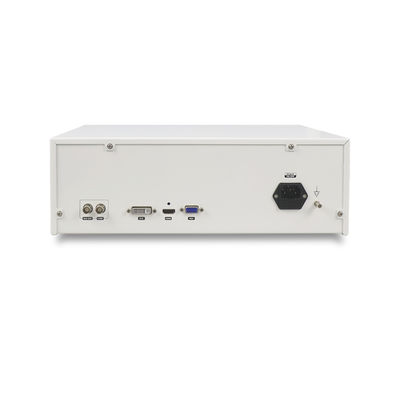

Output Interface	HDMI/SDI/CVBS/DVI/VGA
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
USB Port	USB2.0/USB3.0 (max 32GB support) for recording/photos
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

4K Integrated ENT/Laparoscopic Medical Endoscope Camera for Doctors and Veterinarians

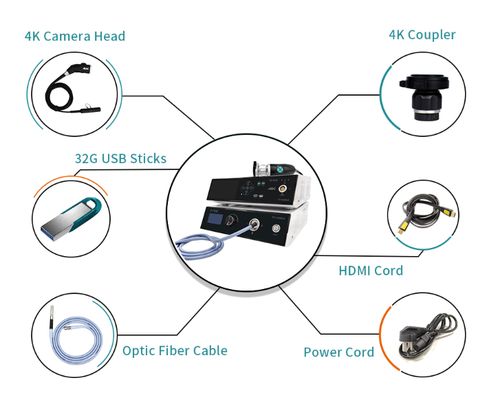

Product Components

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
6-inch display for real-time viewing
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery

推荐产品

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 0

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 1

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 2

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 3

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 4

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 5

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a Chinese medical imaging equipment manufacturer. All products are produced by our workers, with 4 production lines and a dedicated R&D team.

Q: Where are you located?

A: Our address is Building 3, Nantaiyang Yunchuang Valley, Fenghuang District, Shenzhen, Guangdong, China. You're welcome to visit our factory.

Q: Do you accept OEM?

A: Yes, we provide "TUYOU" brand products. We also offer OEM services if required.

Q: What is your delivery time?

A: 7 working days after payment; samples are ready.

Q: What is the warranty?

A: 2 years free warranty. During this period, we will repair and replace faulty components free of charge.

Q: What are your payment terms?

A: We accept T/T bank transfer, Alibaba Trade Assurance, Western Union, MoneyGram, PayPal, L/C, cash, etc.
